Operating Current: : ≤300mA
Working : continue/pulse
Wavelength : 980nm
|
|

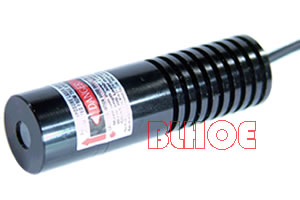

Product Name : laser module |
| Model NO. : BLM98100 | |
| SN : L980C100EC20-70L3 | |
| Operating Voltage : DC3V | |
| Operating Current: : ≤300mA |
|
Working : continue/pulse |
|
Wavelength : 980nm |
|
| Output Power : 100mw | |
| Stability : <10% | |
| Life : ≥8000h | |
| Working temperature : -10～40℃ | |
| Storage temperature : -40～80℃ | |
| Beam Shape : line | |
| Beam Size: 4*400mm @10m | |
| Divergence : ≤2mrad | |
| coaxiality : | |
| Size : D20*L70mm | |
| Pin of power : 100mm | |
| Others : Frequency Modulation≤100kHZ,pulse level≥2Vp-p | |
| Main use : Line laser ,use for point direction, marking ,signal transmission etc. | |
