Operating Current: : <0.2A(AC220V)
Working : continue/pulse
Wavelength : 808nm
|
|

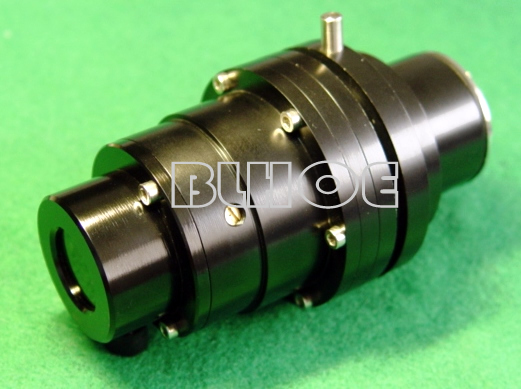

Product Name : IR laser |
| Model NO. : BLP697A1 | |
| SN : BLP697A1 | |
| Operating Voltage : AC220V | |
| Operating Current: : <0.2A(AC220V) |
|
Working : continue/pulse |
|
Wavelength : 808nm |
|
| Output Power : ¡Ü1.8w(class4) | |
| Stability : ¡Ü5% | |
| Life : ¡Ý8000h | |
| Working temperature : -40¡«40¡æ | |
| Storage temperature : -40¡«80¡æ | |
| Beam Shape : -Line | |
| Beam Size: d1.0*400mm(at67cm) | |
| Divergence : ¾Û½¹ | |
| coaxiality : ¡Ü3¡ã | |
| Size : D70*L130mm | |
| Pin of power : 20m | |
| Others : Automatic semiconductor cooling system,inrush current protection,out of temperature protection,broken-down protection | |
| Main use : linear light source for high shooting , for example use at Railway detection, special products could be customized | |
